LEGEND

TRUGLOW

FS - 1

PRECISE OPTICS

The AAMO Legend Truglow FS-1 has a converging binocular optical head with precise optics. The major advantage of this microscope is that it allows deep light penetration, provides greater visibility and better diagnostic perception. Its optics offers a higher quality view with improved efficiency to doctor's working conditions.

Ideal Light Source

The integrated led illumination emits a light beam that penetrates even in the most unapproachable areas during the surgical procedures, thus illuminating your field of view with uniformity.

Tiltable Eye Piece

When work surfaces are set at elbow height to facilitate hand operations, the tiltable eyepiece allows the doctor to set the microscope's eyepiece height to achieve a good ergonomic neutral posture. Adjustability eliminates raised shoulders and bent necks, which can cause discomfort.

C-Mount With Hd Camera

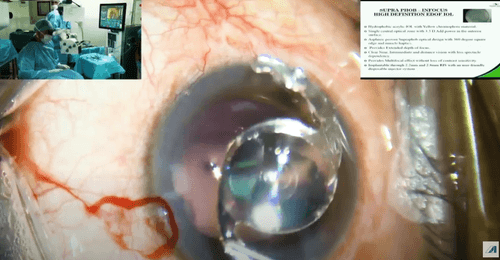

It has an uhd digital camera integrated with seamless designed microscope capable of streaming high resolution video.

Enhanced Magnification

The aamo legend truglow fs-1 provides continuous zoom magnification varying from 0.4x to 2.4x. To improve surgeon convenience the control knobs are located on the sides of the microscope head for selecting the desired magnification. Sterilizable protectors are attached on the magnification changer knobs and the microscope positioning handle.

X-Y Coupling Unit

The ±60mm stroke both in x and y directions allow the surgeon to cover an extensive area during the cataract surgery. With the introduction of an upgraded x-y coupling, reliability in positioning has been improved.

Robust Base Assembly

The aamo legend truglow fs-1 has a solid state mobile floor stand with castor locks that arrest the axial and rotary movement. It also has a stand with counter balanced weight that can withstand the weight of suspension arms.

Foot Switch

Foot controller is the default selection where the zoom function of the microscope and the x-y coupling are selected. The foot controller allows 8-way operations: main lamp on, main lamp off, x direction movement, y direction movement, focusing up, focusing down, zoom up and zoom down.

Footswitch image
Ergonomic Design

Perfect ergonomic facilitating the diagnostic examination saving more working space and creating more access to surgical areas and distracting features
were deliberately omitted.

Footswitch image

Technical Specifications

Surgical Microscope

Eye piece

10x (Option 12.5x )

Binocular tube

: 90° Tillable, F=200mm

Magnification changer

Magnification changer

Magnification

0.4x to 2.4x

Magnification changer

Motorized continuous zoom 1:6

Objective

F = 200 / Optional 175

Focusing

Motorized focusing ( Range-50mm )

X-Y Coupling

Adjustment range

60 mm x 60 mm

Push button for initial position of x-y and focus

Electrical Specifications

Power supply

~110-230 V,50-60Hz

Power in VA

50 VA

Light source

Duel LED

Fuse rating

2A

Classification

Class 1 type B

Stand

Type

Mobile floor stand on four wheels

Balancing

Counter balanced suspension arm

Weight

160 Kg

Illumination

  • LED light with variable independent oblique and co-axial illumination system

  • True glow system-bright homogenous constant red glow

  • Filters-rotatable blue, yellow and retinal guard

Standard Accessories

  • Sterilizable caps ( 2 sets ) • Dust cover ( 1 )

Optional Accessories

  • Sterilizable components for all drive knobs

  • Eye pieces 12.5x

  • Anterior Segment Imaging & Video Documentation Beam Splitter, C-Mount, CCD Camera.

***Designs and details are subject to change without prior notice for the purpose of product development***
